標配處理器CPU(規格/數量)

E-2314

記憶體 (Std/Max)

32G DDR4 3200 ECC UDIMM

硬碟數 (Std/Max)

NON

光碟機

DVD-RW

Expansion Slots

Total PCI/PCI E Slots：4，Slot Type：1 x PCIe x16 slot (Gen4 x16/x8 link)、1 x PCIe x8 slot (Gen4 x0/x8 link)、2 x PCIe x8 slot (Gen3 x4 link)

磁碟控制介面

SATA 控制器: Intel C256

磁碟連接埠(內/外)

8 x SATA 6Gb/s ports with 2 x M.2 (NGFF 22110/2280/2260/2242, gray SATA port*Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal

網路介面

2 x IntelR I210-AT Gigabit LAN

顯示卡

Aspeed AST2600 64MB

傳輸介面

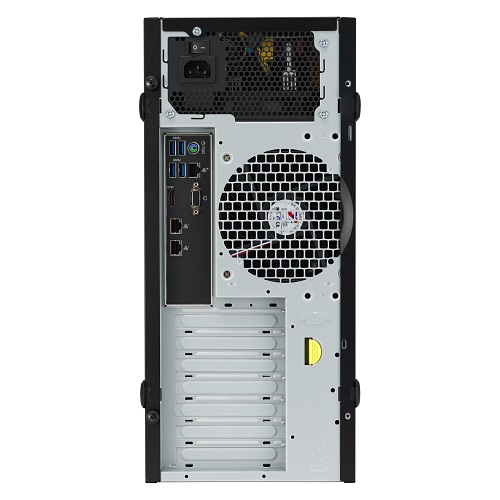

前端：2 x USB 3.0 ports、2 x USB 2.0 ports、1 x Headphone port、1 x Microphone port；後端：2 x USB 3.1 ports、2 x USB 3.0 ports、2 x USB 2.0 ports、1 x VGA Port(support by ASMB10)、1 x HDMI port from CPU (useable only with iGPU)、2 x LAN Ports、3 x Audio Jacks (Realtek ALC887-VD2 8-Channel High Definition Audio CODEC)、1 x PS/2 Keyboard/ Mouse Port、1 x COM port

電源控制器

300W 80+Bronze

鍵盤

USB

滑鼠

USB

主機尺寸

423mm x 190mm x 435mm

其它

三年隔日到府保固(硬碟不取回)

OS Support

RedHat Enterprise Linux 、SuSE Linux Enterprise Server 、CentOS；Please find the latest OS support from http://www.asus.com/

Environment

Operating temperature: 10°C ~ 35°C；Non operating temperature: -40°C ~ 70°C；Non operating humidity: 20% ~ 90% ( Non condensing)
