| 中央處理器 | W-1250 (3.3GHz/6C/12T/12M) |
| 處理器數量(出廠配置) | 1 |
| 處理器數量(最大擴充) | 1 |
| 晶片組 | Intel® W480 Chipset |
| 作業系統 | Win10 Pro for Workstation |
| 記憶體 | 16G ECC DDR4-3200 (實際運行頻率DDR4-2666) |
|
記憶體插槽數量/ 已佔用數量 |
總 Slots 數 : 4 (2 通道) 總容量 : 最大至 128GB UDIMM 記憶體類型 : 雙通道 DDR4 2933/2666 non ECC and with ECC |
| 硬碟機 | 2TB(企業級) |
| 硬碟機數量(標準/最大) | 1x internal 2.5” drive bay 3x internal 3.5” drive bay (or 3x internal 2.5” drive bay: optional cage required) 2x internal 2.5”/3.5” drive bay (optional cage required) |
| 光碟機 | DVD-RW |
| 磁碟控制器 | SATA 控制器: Intel® W480 Chipset 8 x SATA3 6Gb/s 連接埠 Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) |
| I/O傳輸介面 | 前面板： 2 x USB 3.2 Gen1 2 x USB 2.0 1 x Headphone port 1 x Microphone port 後面板： 2 x USB 3.2 Gen2 ports (1 port at Type A, 1 port at Type C) 4 x USB 3.2 Gen1 ports 1 x HDMI 1 x DisplayPort 1 x DVI-D 1 x VGA 2 x RJ-45 ports 1 x 7.1-channel Audio I/O ports (5 + 1 Audio jacks) |
| 網路功能 | 1 x I225-LM 1 x i219-LM |

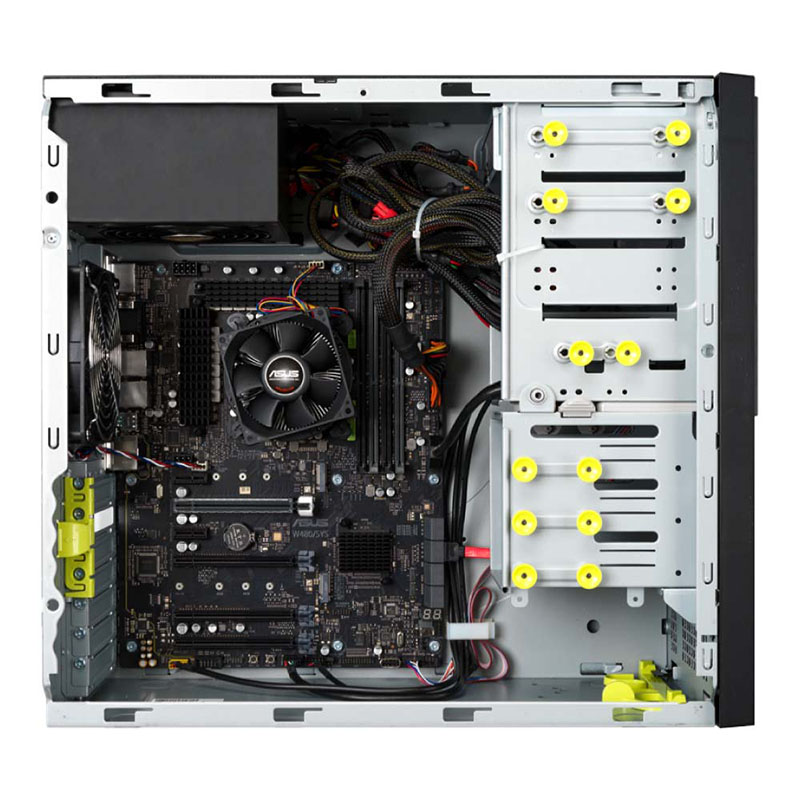

| 擴充槽數量 | Total: 6 Location-1: PCIe x1 slots (Gen3 x1 link, FH, FL)* Location-2: PCIe x16 slots (Gen3 x16/x8 link, FH, FL) Location-3: PCIe x1 slots (Gen3 x1 link, FH, FL)* Location-4: PCIe x16 slots (Gen3 x0/x8 link, FH, FL) Location-6: PCIe x16 slots (Gen3 x4 link, FH, FL) Location-7: PCIe x16 slots (Gen3 x4 link, FH, FL)** *the bandwidth of PCIe link is shared with M.2_1 ** the bandwidth of PCIe link is shared with 4 x SATA ports |
| 尺寸 | 423mm x 190mm x 435mm |
| 電源供應器 | 550W 80+ Gold |

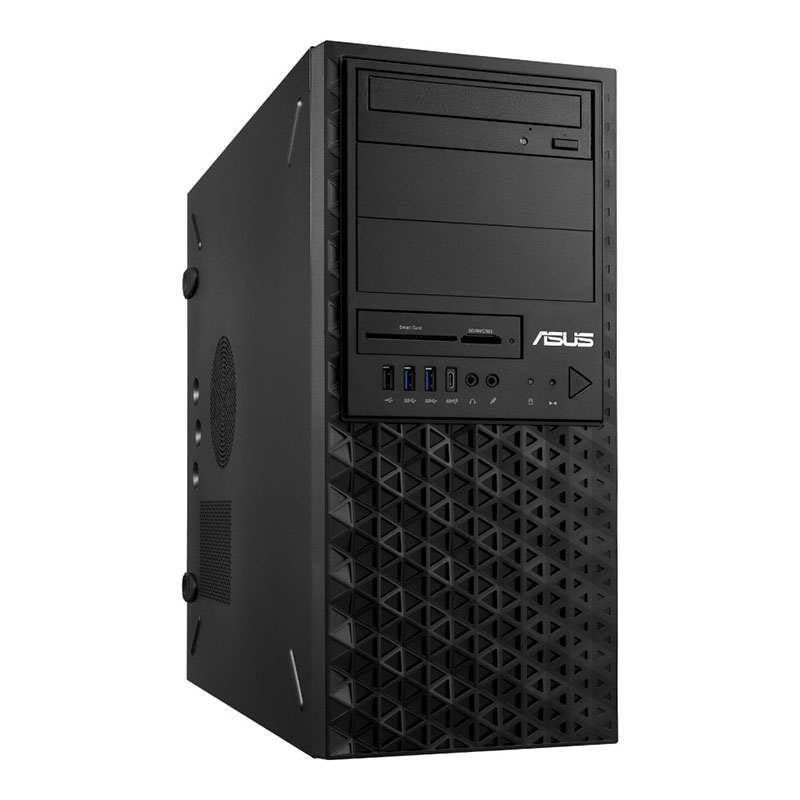

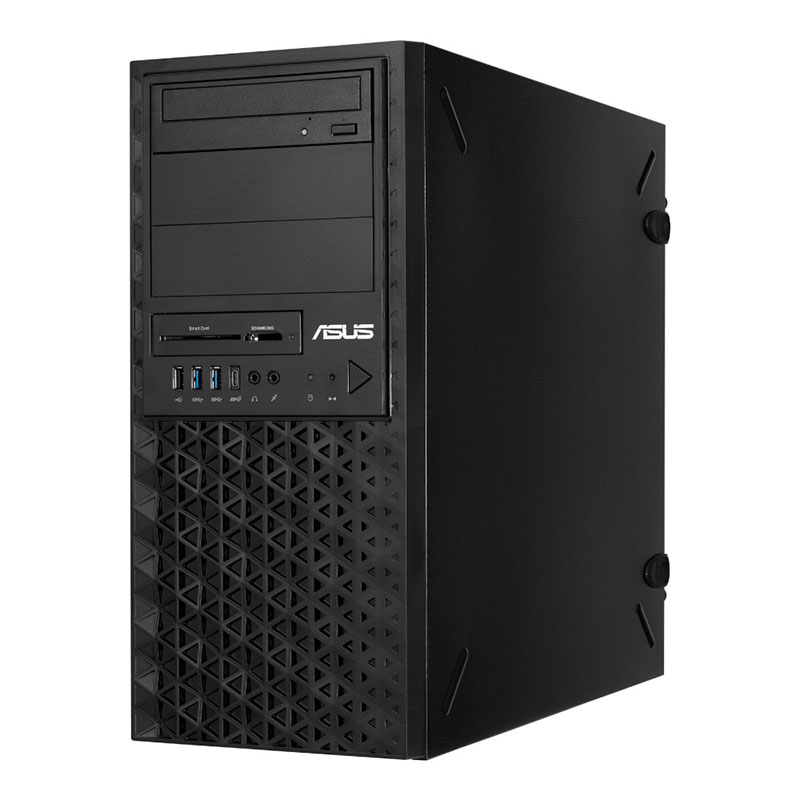

| 機構型式 | Tower |
| 保固期限 | 三年保(隔日) |
